Cooling Heating Heat Pump Air Conditioners
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | High Efficiency | Power Source: | Electric |
|---|---|---|---|
| Application: | Shopping Mall | Capacity: | 12000 BTU |
| Compressor Brand: | GMCC | Compressor Type: | Rotary |
| Function: | Cooling, Heating | Gas: | R22 |
| Product Name: | Heat Pump Air Conditioners | Type: | Split |
| Voltage: | 220V, 50Hz | Control: | Remote |
| Highlight: | Wall Mount Air Conditioners,indoor air conditioner |
||

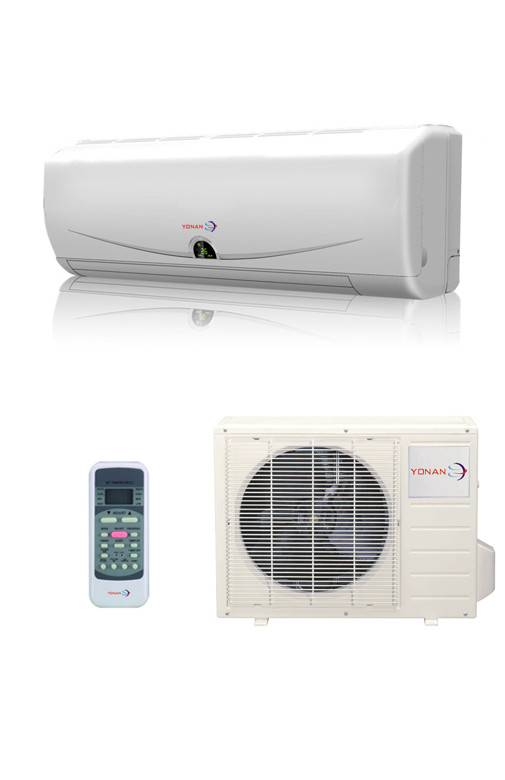

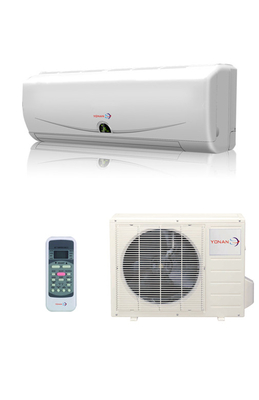

Cooling Heating 12000 BTU Heat Pump Air Conditioners / Wall Split Air Conditioning
Quick Detail:
- Cooling/Heating: cooling only; cooling & heating
- Type: Split AC
- Power Source: electric
- Capacity:12000BTU
- Voltage: 220V60HZ
- Power: 1TON
- Certificate: Sencamer,INMETXO
- Application: House or residence , public place including super market , shopping mall
Description
- WALL SPLT AC 220V 50HZ COOL&HEAT R22 AIRE ACONDICIONADO SPLIT MURO
- For south america market and central America market
- New Design panel ,top discharge or side discharge
- Power supply: 230V,50Hz
- Self-diagnosis and auto-protection function
- Air flows in four directions by adjusting air duct louvers
- .High cooling
- Low temperature start, electricity heating
- LED motion display, easy to check its run
- 5 years warranty for compressor, and 3 years for complete unti
- Offer 1% free spare part of total amount
Specifications:
|
Model |
|
|
YSR1-12HR-NB4 |
|
Power supply |
|
Ph-V-Hz |
1Ph, 220-230V～, 60Hz |
|
Cooling |
Capacity |
Btu/h |
12000 |
|
|
Input |
W |
1472 |
|
|
Rated current |
A |
6.7 |
|
|
EER |
W/W |
2.39 |
|
Heating |
Capacity |
Btu/h |
11600 |
|
|
Input |
W |
1260 |
|
|
Rated current |
A |
5.2 |
|
|
COP |
W/W |
2.70 |
|
Moisture Removal |
|
L/h |
1.1 |
|
Max. input consumption |
|
W |
1600 |
|
Max. current |
|
A |
8.0 |
|
Starting current |
|
A |
25.7 |
|
Compressor |
Model |
|
PH180G1C-3DZU2 |
|
|
Type |
|
ROTARY |
|
|
Brand |
|
GMCC |
|
Indoor fan motor |
Model |
|
RPG20B |
|
|
Brand |
|
Welling |
|
|
Input |
W |
43 |
|
|
Capacitor |
uF |
1.5 |
|
|
Speed(Hi/Mi/Lo) |
r/min |
1220/1100/850 |
|
Indoor coil |
a.Number of rows |
|
1/2 |
|
|
b.Tube pitch(a)x row pitch(b) |
mm |
21x13.37 |
|
|
c.Fin spacing |
mm |
1.2/1.3 |
|
|
d.Fin type (code) |
|
Hydrophilic aluminium |
|
|
e.Tube outside dia.and type |
mm |
Φ7, innergroove tube |
|
|
f.Coil length x height x width |
mm |
637x84x13.37+637x189x26.74 |
|
|
g.Number of circuits |
|
2 |
|
Indoor air flow (Hi/Mi/Lo) |
|
m3/h |
520/470/380 |
|
Indoor noise level (Hi/Mi/Lo) |
|
dB(A) |
42/39/36 |
|
Indoor unit |
Dimension(W*D*H) |
mm |
790x196x275 |
|
|
Packing (W*D*H) |
mm |
865x265x350 |
|
|
Net/Gross weight |
Kg |
9/11 |
|
Outdoor fan motor |
Model |
|
YDK24-6FB(B) |
|
|
Brand |
|
Welling |
|
|
Input |
W |
67 |
|
|
Capacitor |
uF |
2.5 |
|
|
Speed |
r/min |
890 |
|
Outdoor coil |
a.Number of rows |
|
1 |
|
|
b.Tube pitch(a)x row pitch(b) |
mm |
22x19.05 |
|
|
c.Fin spacing |
mm |
1.4 |
|
|
d.Fin type (code) |
|
Hydrophilic aluminium |
|
|
e.Tube outside dia.and type |
mm |
Φ7.94, innergroove tube |
|
|
f.Coil length x height x width |
mm |
593x484x19.05 |
|
|
g.Number of circuits |
|
2 |
|
Outdoor air flow |
|
m3/h |
1900 |
|
Outdoor noise level |
|
dB(A) |
53 |
|
Outdoor unit |
Dimension(W*D*H) |
mm |
700x240x540 |
|
|
Packing (W*D*H) |
mm |
815x325x580 |
|
|
Net/Gross weight |
Kg |
24.5/26.5 |
|
Refrigerant type |
|
g |
R22/670g |
|
Design pressure |
|
MPa |
2.6/1.0 |
|
Refrigerant piping |
Liquid side/ Gas side |
mm(inch) |
Φ6.35 / Φ12.7(1/4"/1/2") |
|
|
Max. refrigerant pipe length |
m |
10 |
|
|
Max. difference in level |
m |
5 |
|
Connection wiring |
|
|
1.5(Optional) |
|
Plug type |
|
|
16#x3/SP008 |
|
Thermostat type |
|
|
Remote control |
|
Operation temperature |
Indoor(cooling/ heating) |
℃ |
17～32/0～30 |
|
|
Outdoor(cooling/heating) |
℃ |
18～43/-7～24 |
|
Application area |
|
m2 |
16-26 |
|
Qty’per 20’ /40’ /40'HQ |
|
|
121/254/292 |
Applications:
House or residence , public place including super market , shopping mall ....
Competitive Advantage:
high efficiency,
low ambient Self-diagnosis and auto-protection function
