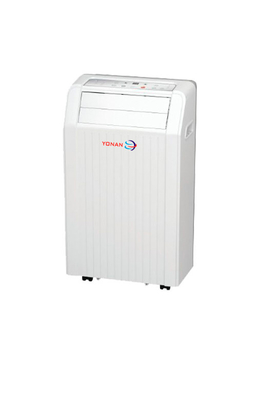

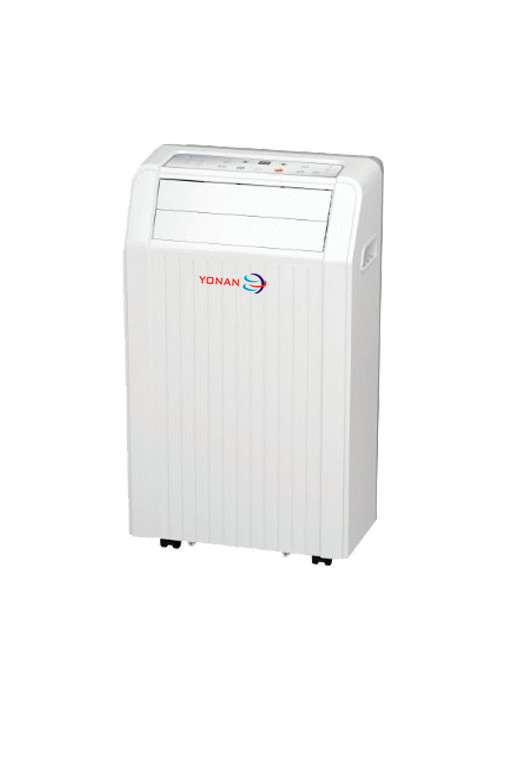

Portable Cooling Only Mobile Home Air Conditioners

Model

KYD-08/X1

Power supply

Ph-V-Hz

1Ph, 115~, 60Hz

Cooling

Capacity

Btu/h

8000

Input

W

910

Current

A

8.2

EER

Btu/h/W or W/W

2.57

Heating

Capacity

Btu/h

N/A

Input

W

N/A

Rated current

A

N/A

COP

Btu/h/W or W/W

N/A

Moisture Removal

L/h

0.9

Rated input consumption

W

1183

Rated current

A

11.4

Starting current

A

32

Plug type

14#x3/LCDI

Control type

Remote Control

Compressor

Model

YZG-A071AY2D2

Type

ROTARY

Brand

Qing an

Refrigerant type

kg

R410A/0.29kg

Design pressure

MPa

4.2/1.5

Indoor fan motor

Model

YDK15-4AK

Brand

Welling

Input

W

45/41/39

Capacitor

uF

2.5

Speed(hi/mi/lo)

r/min

1330/1210/1110

Evaporator

a.Number of rows

2

b.Tube pitch(a)x row pitch(b)

mm

21x13.37

c.Fin spacing

mm

1.3

d.Fin type (code)

Hydrophilic aluminium

e.Tube outside dia.and type

mm

Φ7,innergroove tube

f.Coil length x height x width

mm

322x252x26.74

g.Number of circuits

1

Indoor air flow (Hi/Mi/Lo)

m3/h

465/424/366

Indoor noise level (Hi/Mi/Lo)

dB(A)

56/53/50

Condenser

a.Number of rows

2

b.Tube pitch(a)x row pitch(b)

mm

19.5x11.6

c.Fin spacing

mm

1.2

d.Fin type (code)

UnHydrophilic aluminium

e.Tube outside dia.and type

mm

Φ5,innergroove tube

f.Coil length x height x width

mm

220x312x23.2

g.Number of circuits

1

 Outdoor  fan motor

Model

YDK62-4E

Brand

Welling

Input

W

115

Capacitor

uF

6.0

Speed(hi/mi/lo)

r/min

1170/--/--

Outdoor noise level (Hi/Mi/Lo) dB(A)

dB(A)

60

Dimension  (W*D*H)

mm

430x338x707

Packing  (W*D*H)

mm

492x402x880

Net/Gross weight

Kg

25.5 / 30

Operation temp (room temp.)

℃

17-35/----

Application area

Sq. Feet

300-350

Qty’per 20’ /40’ /40'HQ

Pieces

132/272/408
