Commercial 60Hz Ceiling Mounted Air Conditioner
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Residence, Shopping Mall | Capacity: | 36000 Btu |
|---|---|---|---|
| Gas: | R410A | Power: | 60HZ |
| Product Name: | Ceiling Mounted Air Conditioner | Voltage: | 60HZ |
| Compressor Brand: | TOSHIBA | ||
| Highlight: | commercial air conditioning,home air conditioning |
||
Commercial 60Hz Ceiling Mounted Air Conditioner 36000 Btu for Residence
Quick Detail:
36000 Btu
2. top discharged condensing unit
3. Toshiba compressor
4. sufficient cool supply
5. for South America market
Specifications:
|
Sale Model |
MOVA-18CN1-M13C |
||
|
Matched outdoor(indoor) unit sale models |
|
MVA-18HWN1-M13 |
|
|
Power supply |
V-Ph-Hz |
208/230V-1Ph-60Hz |
|
|
Cooling |
Capacity |
Btu/h |
17500 |
|
SEER |
Btu/h.W |
13 |
|
|
Heating |
Capacity |
Btu/h |
/ |
|
HSPF |
Btu/h.W |
/ |
|
|
Max. input consumption |
W |
2077 |
|
|
Max. current |
A |
11.2 |
|
|
Starting current |
A |
50 |
|
|
MCA |
A |
11.9 |
|
|
MOP |
A |
20 |
|
|
Piston |
inch |
/ |
|
|
Compressor |
Model |
|
ZP16K5E-PFV-130 |
|
Type |
|
Scroll |
|
|
Brand |
|
Copeland |
|
|
Supplier |
|
Copeland |
|
|
Capacity |
Btu/h |
15524.6 |
|
|
Input |
W |
1660 |
|
|
Rated current(RLA) |
A |
9 |
|
|
Locked rotor Amp(LRA) |
A |
48.0 |
|
|
Thermal protector |
|
YES |
|
|
Capacitor |
uF |
30 |
|
|
Crankcase |
W |
30 |
|
|
Refrigerant oil |
ml |
740 |
|
|
Outdoor fan motor |
Model |
|
YDK60-6G |
|
Type |
|
AcMotor |
|
|
Brand |
|
Welling |
|
|
Insulation class |
|
B |
|
|
Safe class |
|
IPX4 |
|
|
Input |
W |
125 |
|
|
Rated current |
A |
0.61 |
|
|
Capacitor |
uF |
6 |
|
|
Rated RPM |
r/min |
1075 |
|
|
Rated HP |
|
1/12 |
|
|
Outdoor fan |
material |
|
Alnico |
|
Type |
|
Axial flow fan |
|
|
Diameter |
inch |
17-3/4 |
|
|
Height |
inch |
4-3/4 |
|
|
Outdoor coil |
Number of rows |
|
1.7 |
|
Net face area(Outer coil) |
sq. ft. |
9 |
|
|
Net face area(Outer coil) |
sq. ft. |
6.3 |
|
|
Tube pitch(a)x row pitch(b) |
mm |
21x13.37 |
|
|
Fin spacing |
mm |
1.3 |
|
|
Fins per inch |
|
20 |
|
|
Fin type (code) |
|
hydrophilic aluminium |
|
|
Tube outside dia.and type |
mm(inch) |
7(9/32) |
|
|
innergroove tube |
|||
|
Coil length x height |
mm |
1419X588X26.74 |
|
|
inch |
55-7/8"X23-1/8"X1" |
||
|
Number of circuits |
|
25 |
|
|
Outdoor air flow |
m3/h |
2600 |
|
|
CFM |
1529 |
||
|
Outndoor sound level(sound pressure level ) |
dB(A) |
56 |
|
|

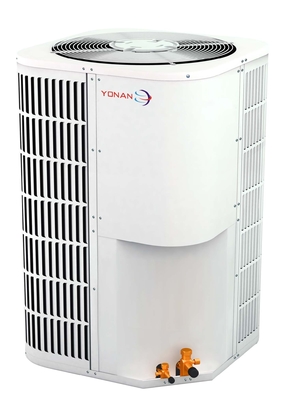

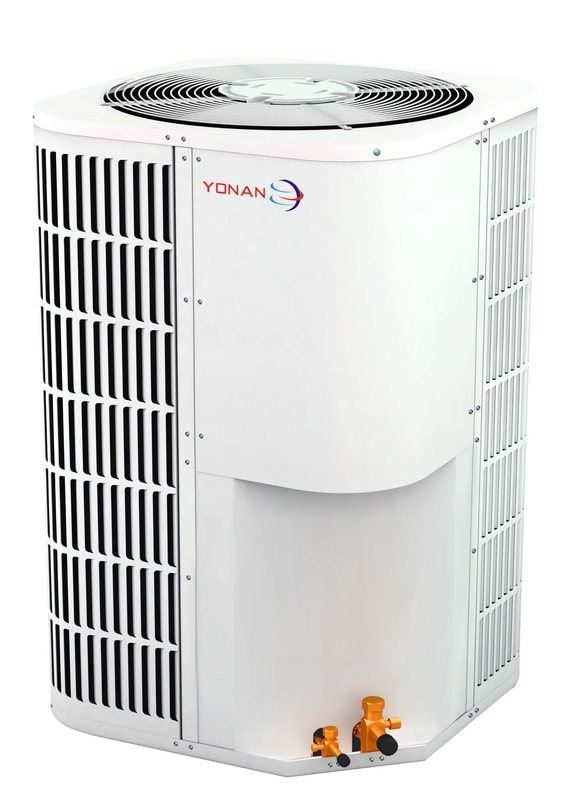

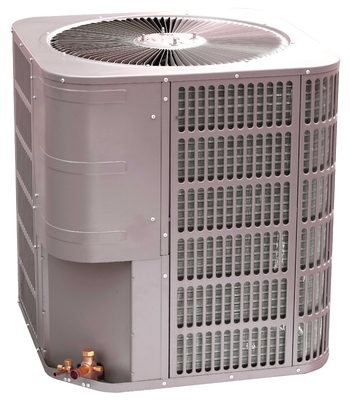

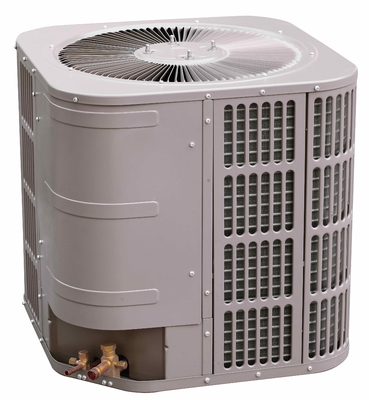

Outdoor unit |
Dimension(W*H*D) |
mm |
554X633X554 |
|
inch |
21-7/8””×24-15/16×21-7/8 |
||
|
Packing (W*H*D) |
mm |
582X667X582 |
|
|
inch |
22-9/10x26-1/4x22-9/10 |
||
|
Net/Gross weight |
Kg |
54/59 |
|
|
lbs |
119/130 |
||
|
Throttle type(indoor) |
|
Piston |
|
|
Charged refrigerant type |
g |
R410a:2700 |
|
|
lbs. oz. |
5 lbs.5 oz. |
||
|
Design pressure |
PSI |
550/250 |
|
|
Refrigerant piping |
Liquid side/ Gas side |
inch |
3/8 / 3/4 |
|
Max. refrigerant pipe length |
ft |
150 |
|
|
Max. difference between outdoor unit and indoor unit |
ft |
33 |
|
|
Connection wiring |
Power wiring |
mm2 |
3*2.1(14AWG) |
|
Signal wiring |
mm2 |
2*0.8(18AWG) |
|
|
Controller |
|
Wire Controller |
|
|
Operation temp |
℃ |
17～30 |
|
|
Ambient temp |
℃ |
18～43 |
|
|
Shipping per STD40HQ |
|
|
320 |
Applications:
for South America market ....
Competitive Advantage:
energy saving, high efficiency,
low ambient Self-diagnosis and auto-protection function
